ارزیابی بیومکانیکی پیچ و پلاک ارتوپدی

امتیازی ثبت نشده است
6
نویسنده

امیرحسین گوهریان

فایل 1

روش های ارزیابی بیومکانیکی

فایل 2

فواید و ویژگی های ارزیابی بیومکانیکی

ارزیابی بیومکانیکی پیچ و پلاک ارتوپدی

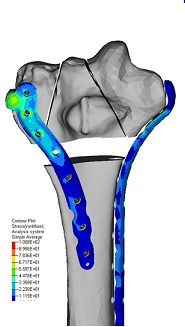

ارزیابی بیومکانیکی ایمپلنت های ارتوپدی با استفاده از تست های بیومکانیکی (experimental biomechanical evaluation) و آنالیز های بیومکانیکی (computational biomechanical evaluation) انجام می پذیرد. در فایل اول، مبانی و جزییات هر دو روش شرح داده می گردد. روش های شرح داده شده، قبلا توسط نویسنده برای بیش از 15 نوع پیچ و پلاک ارتوپدی انجام شده است. در فایل دوم، ویژگی ها و فواید استفاد از آنالیز های بیومکانیکی (computational biomechanical evaluation) با استفاده از نرم افزار المان محدود هایپرمش (Hypermesh)، به طور اختصاصی ارایه گردیده است. در این فایل، تصویر برخی از تحلیل های انجام شده با استفاده از Hypermesh برای آشنایی بیشتر با خروجی تحلیل، مشاهده می گردد. در آینده فایل گام به گام آموزش با نرم افزار Hypermesh برای تحلیل بیومکانیکی پیچ و پلاک ارتوپدی، تهیه می گردد.

بیشـتر

70,000 تومان

توضیحات مختصر محصول
ارزیابی بیومکانیکی پیچ و پلاک ارتوپدی

ارزیابی بیومکانیکی پیچ و پلاک ارتوپدی



Reliable Biomechanical Finite Element Analysis (FEA)

Stage 1: Design the Biomechanical FE Setup (Bone-Implant Fixation and associated Jigs)

Stage 2: Create the FE Simulation Setup in HyperMesh Software (with effective contact conditions between the components and effective meshing of the models)

Stage 3: Optimize the Loading & Boundary Conditions and non-Linear Geometric Analysis Parameters to obtain the Reliable Results

Stage 4: Optimize the Design Parameters of the Implant



Benefits of Reliable Biomechanical FEA

 Optimization of the Biomechanical Testing Setup

Determine the Localized Stress Zones

Reduce the Maximum Stress Range

Estimate the Fatigue Life

Reliable & Effective Optimization of the Design Parameters

Semi-Rigid Designing of the Implant



Enhanced Biomechanical FEA Characters

Using of Non-Linear Implicit Geometric Analysis for effective and reliable simulation of the deformation of the bone-implant construct under applied loading conditions, which would be greatly better than normal linear and explicit types of analyses. a

Meshing of the implant and bone with Fine Mesh (less than 500 mm mesh size) to maintain the irregularity and complexity of the geometry for obtaining the more reliable and accurate results. a

Effective defining of the contact conditions between the components for enhanced simulation of the load transferring. a

Using of RBE3-Bar element technique (innovative technique based on my long-term experience) for modeling and simulation of the screws, particularly locking screws. a

Avoid direct applying of the load to the components and using of adequate jig or tool to apply the load as similar to the conditions that would be utilized in experimental test. a

Similar or Close trend of the Force-Displacement Graph, between the enhanced FE simulation analysis and experimental test by consideration of real conditions in experimental testing. a

نمایش بیشتر
